Logging

Document Metadata
Category: Monitoring & Diagnostics / Logging & Audit Trails
Audience: Administrators, Engineers, Support Team
Difficulty: Intermediate
Time Required: Approximately 25–35 minutes
Prerequisites: Active ConnexCS account with access to the Logging module, ability to navigate call-records and SIP trace logs
Related Topics: Troubleshooting – Signaling, Call Disconnection Reasons
Next Steps: After reviewing the logging guide, locate a set of recent call-records, filter for problem calls (errors, drops), export SIP traces for deeper analysis, and set up a routine review of log alerts (e.g., elevation in error codes) to proactively track system health.

Logging

The Logging function checks real-time call attempts, Session Initiation Protocol (SIP) traces, routing status, and simulates a call.

As soon as a call hits the ConnexCS system, it will display in the Logging area. The majority of issue debugging takes place in the Logging section.

Why do need a Logging Section?

  • Efficient Debugging: Helps identify and resolve system issues quickly.
  • Call Flow Analysis: Tracks call routing and detects irregularities.
  • Security Monitoring: Logs unauthorized access attempts and suspicious activities.
  • Performance Optimization: Provides insights into system performance and helps with fine-tuning configurations.
  • Regulatory Compliance: Maintains records for audits and compliance requirements

Register Logging

To view calls that are having issues registering, click Register Logging, and then click on a specific Call ID to view the Call Details and SIP Trace.

Fraud Logging

View the log of Fraud events. See Setup Fraud Detection for configuration.

Simulate

Simulating calls lets providers identify areas of concern or just verify functionality, by testing in different setups and operational configurations.

To Simulate Calls:

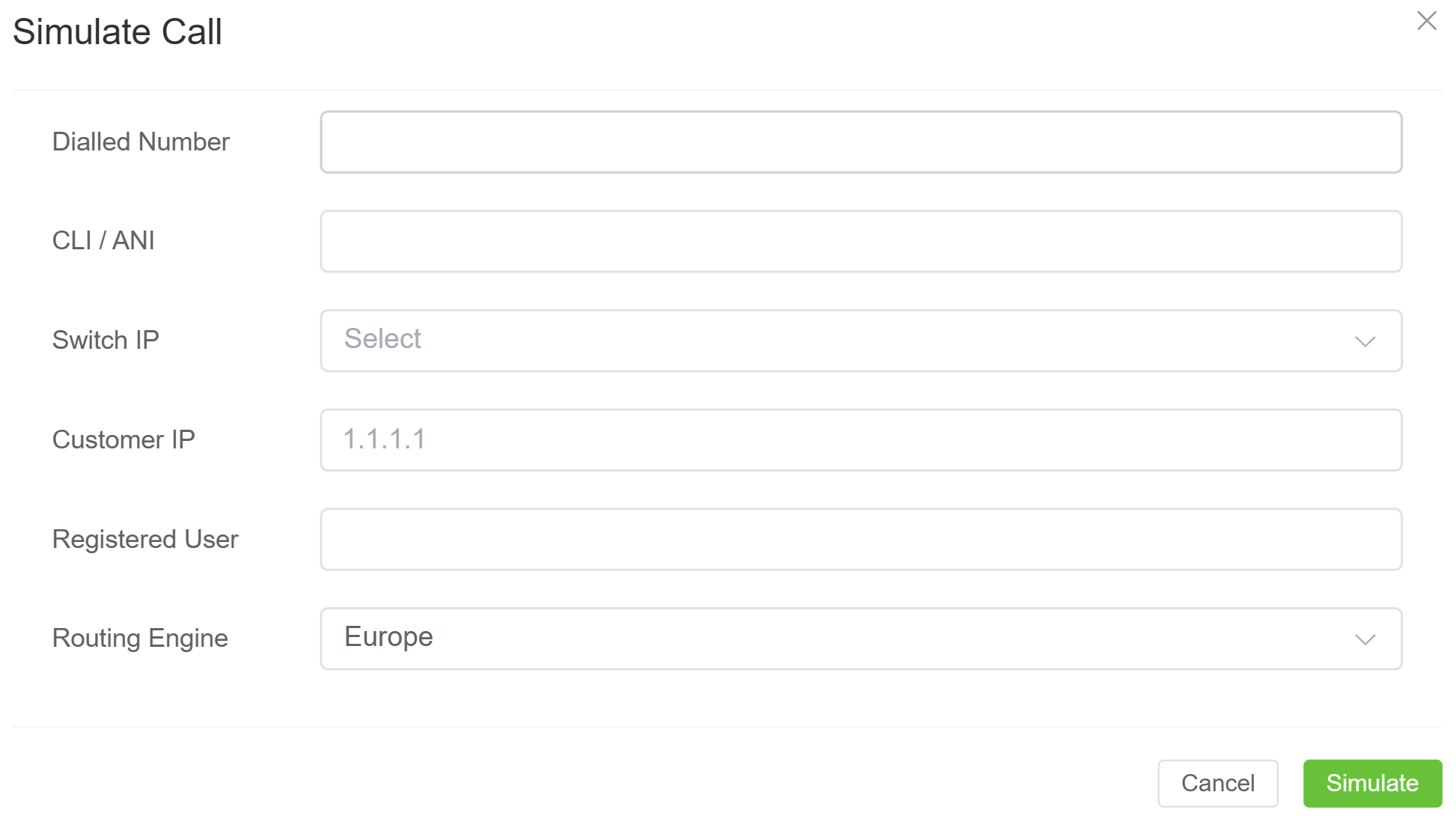

Click Simulate either from the Logging screen or from within a specific Call ID:

  • Dialed Number: Where the call will end (destination).
  • CLI/ANI: Where the call will originate from (configured on ConnexCS). Click here to know more
  • Switch IP: Where the call will traverse.
  • Customer IP: The ConnexCS Customer IP address is where the call will originate.
  • Registered User: (Optional) Enter a SIP extension user.
  • Routing Engine: Select the regional zone.

Click Simulate.

The simulation call result will appear in logging. The Call ID will begin with a SIM tag. Click the Call ID to view the call's routing status.

Testing a fixed issue

After you have fixed a routing issue with a specific call, you can go into the Call ID and run the Simulate tool to ensure any routing issues get resolved and the call is now successful.

Compare (Call IDs)

Compare Call IDs refers to the process of analyzing two or more Call IDs to identify differences and similarities in their call logs.

This comparison helps in diagnosing issues by examining factors such as switch, user agent, start time, CLI, end time,proocol, sip_code, sip_reason, port number etc.

It's particularly useful for troubleshooting by highlighting discrepancies between successful and failed calls.

How to use?

  1. Login to your Control Panel.
  2. Navigate to Logging.

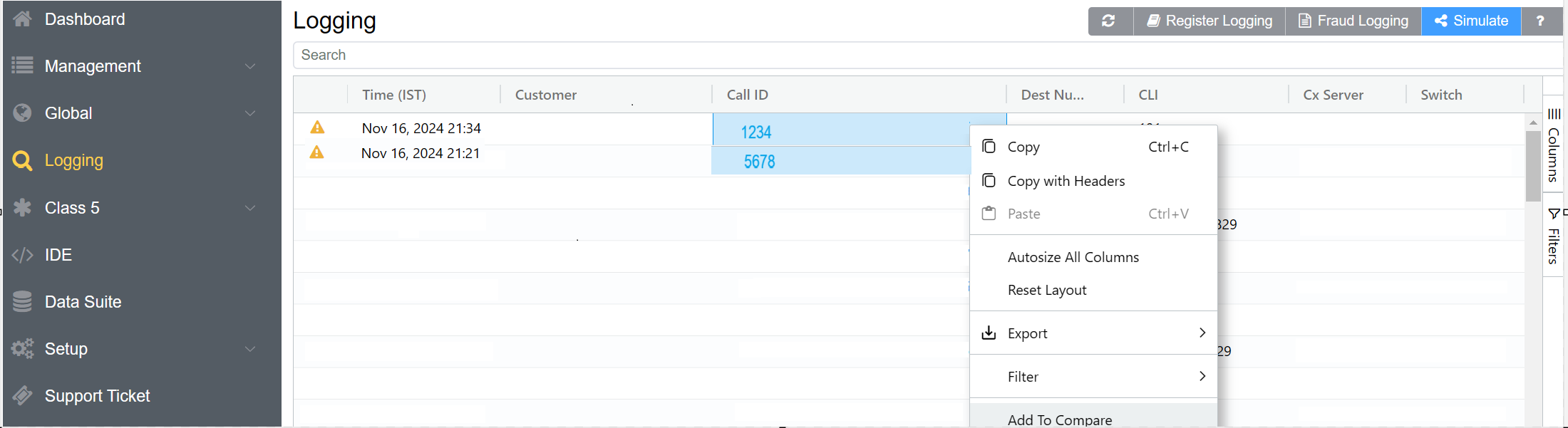

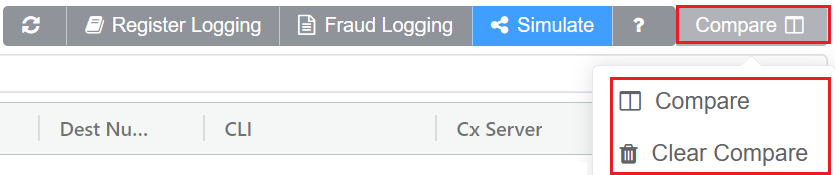

  3. Right click on the Call-IDs and click Add to Compare.

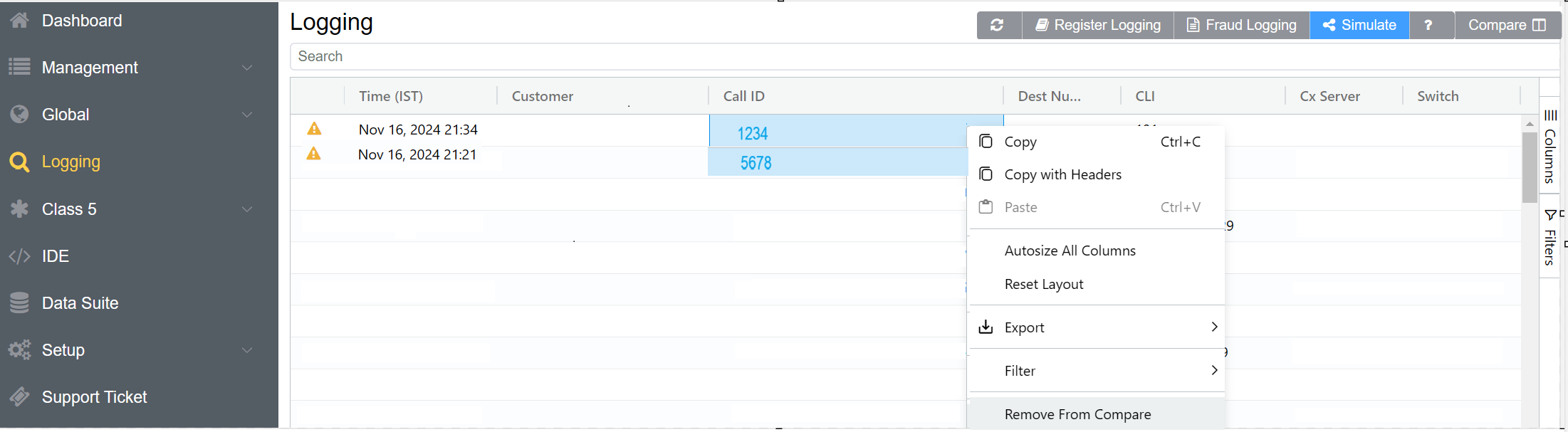

  4. You also have the option to Remove from Compare to deselect the Call IDs.

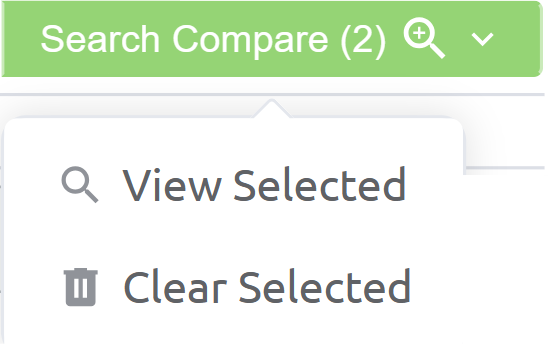

  5. A Compare field will appear on the right corner.

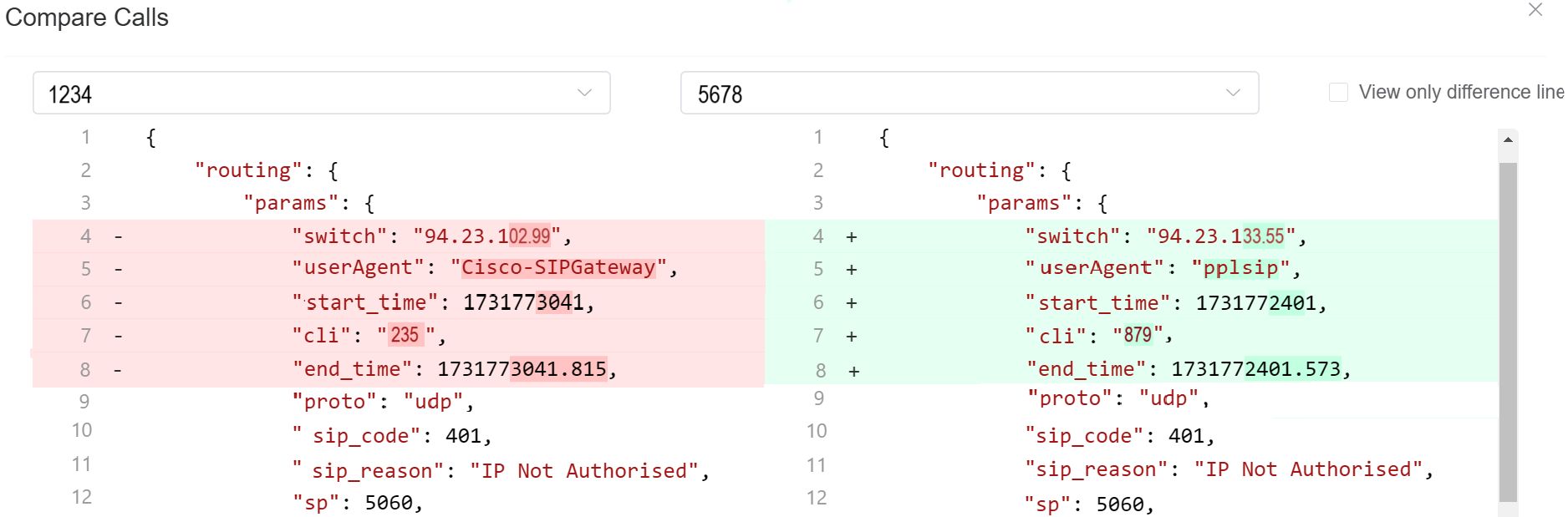

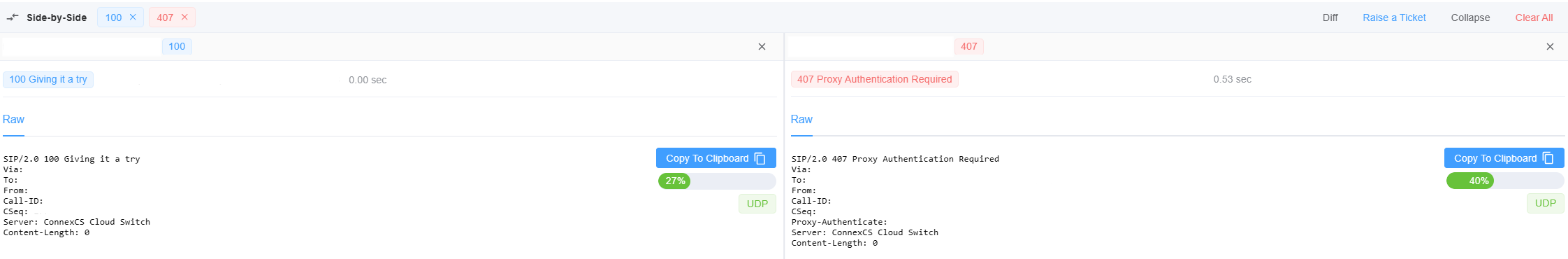

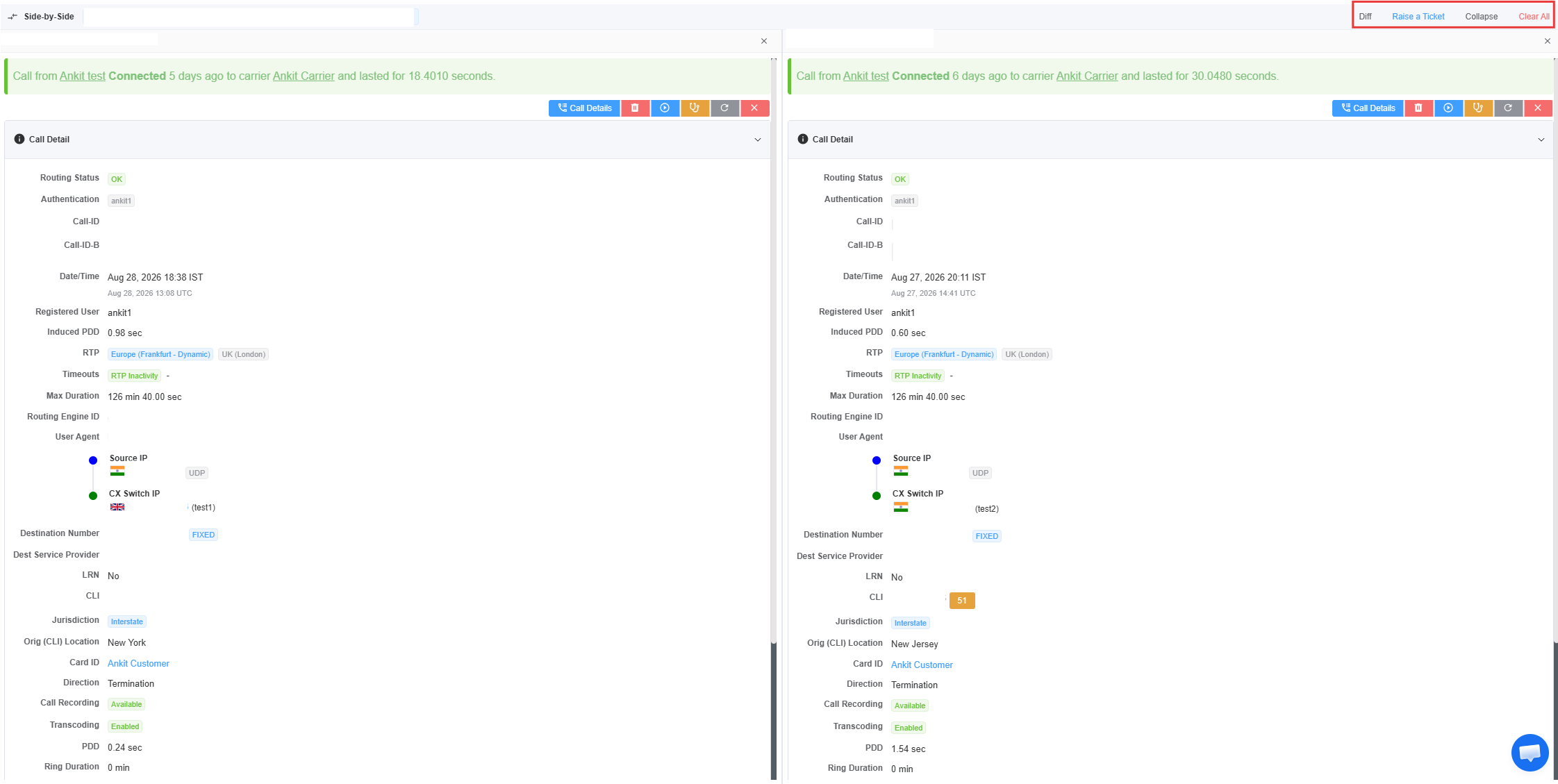

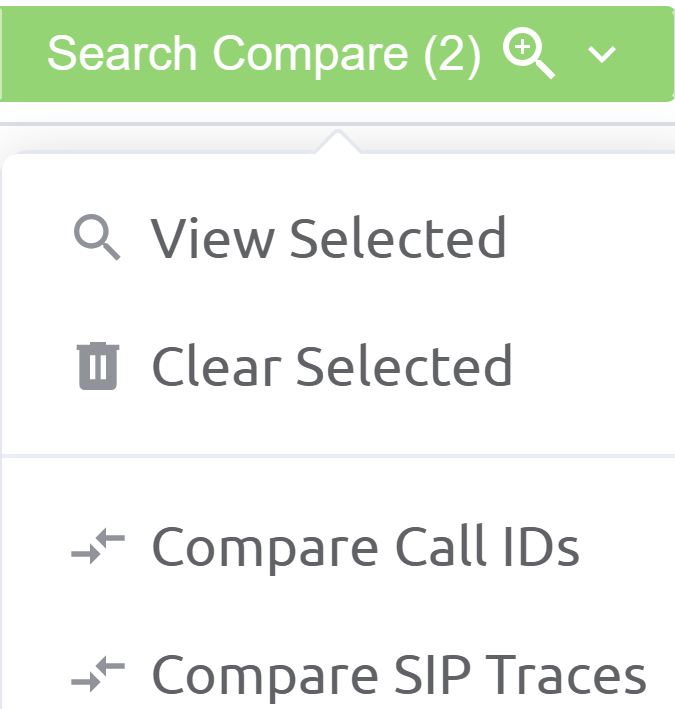

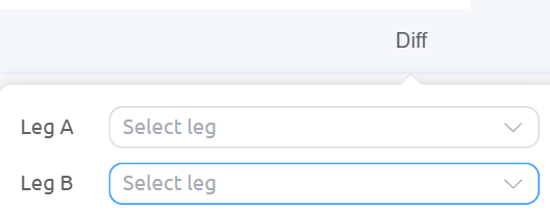

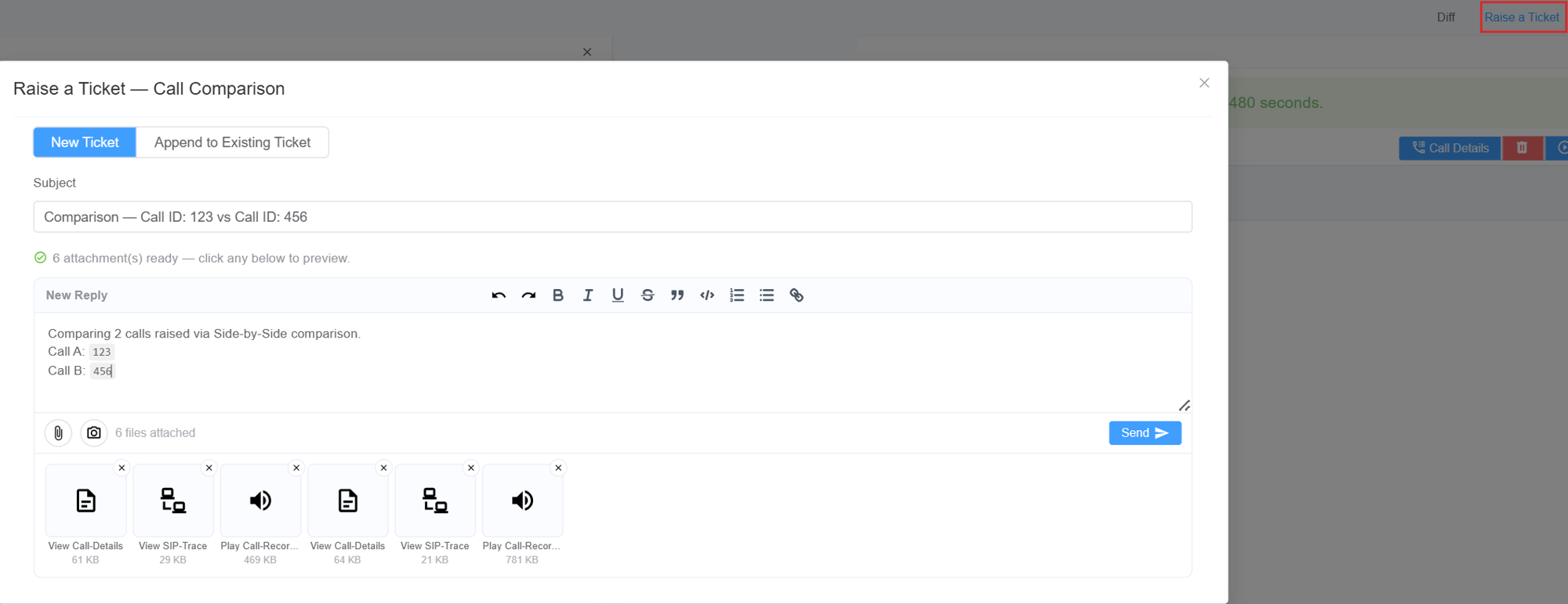

  6. Click Compare, a widow will appear where you need to select the Call IDs for comparison.

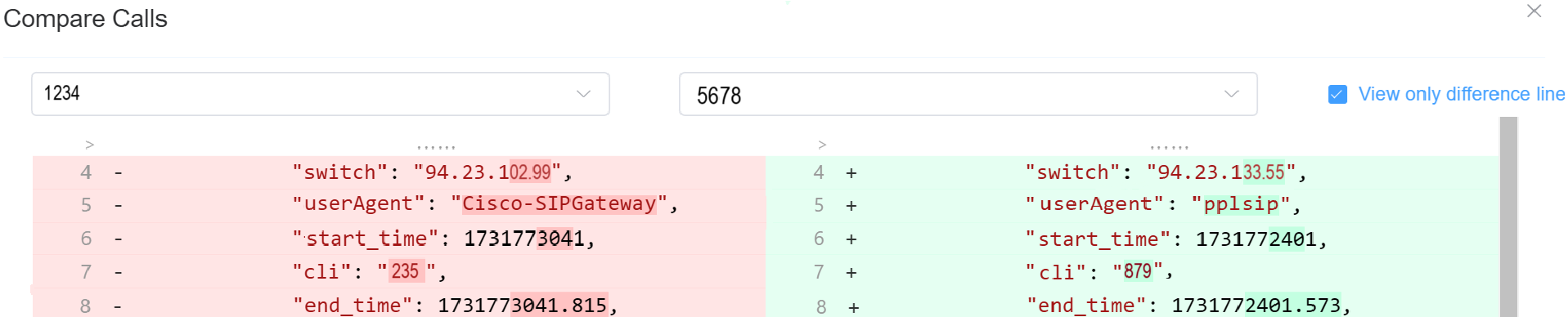

  7. Check View only difference lines to view only the parameters of call logs that differ between two Call IDs.
  8. Once the comparison is complete, you can Clear Compare to reset all the Call IDs comparisons.

Searching the Logs

To search the Logs, at the top-right of the Logging page, enter the search for calls by phone number, Call ID, or IP address into the text box and click Search.

Call ID Details

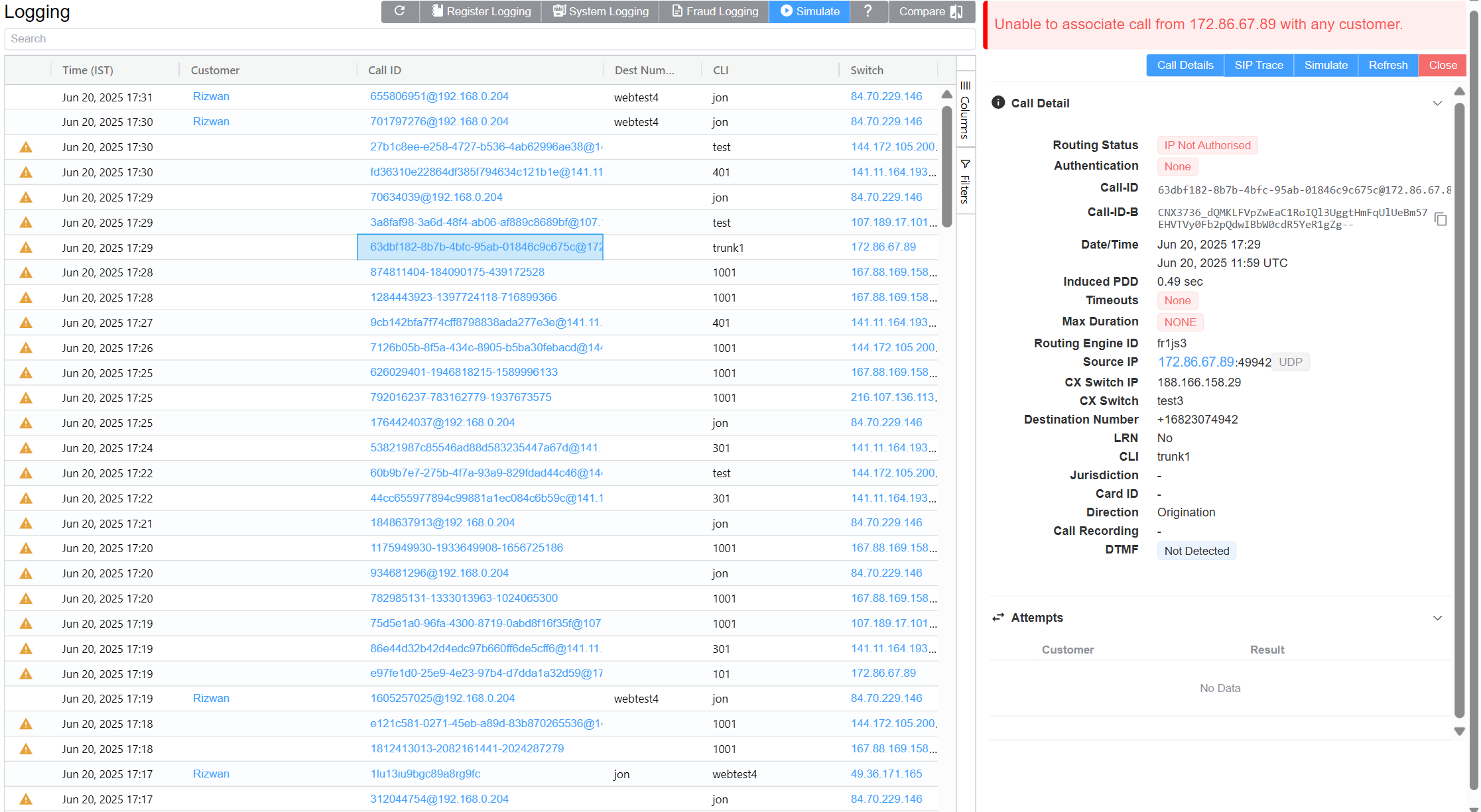

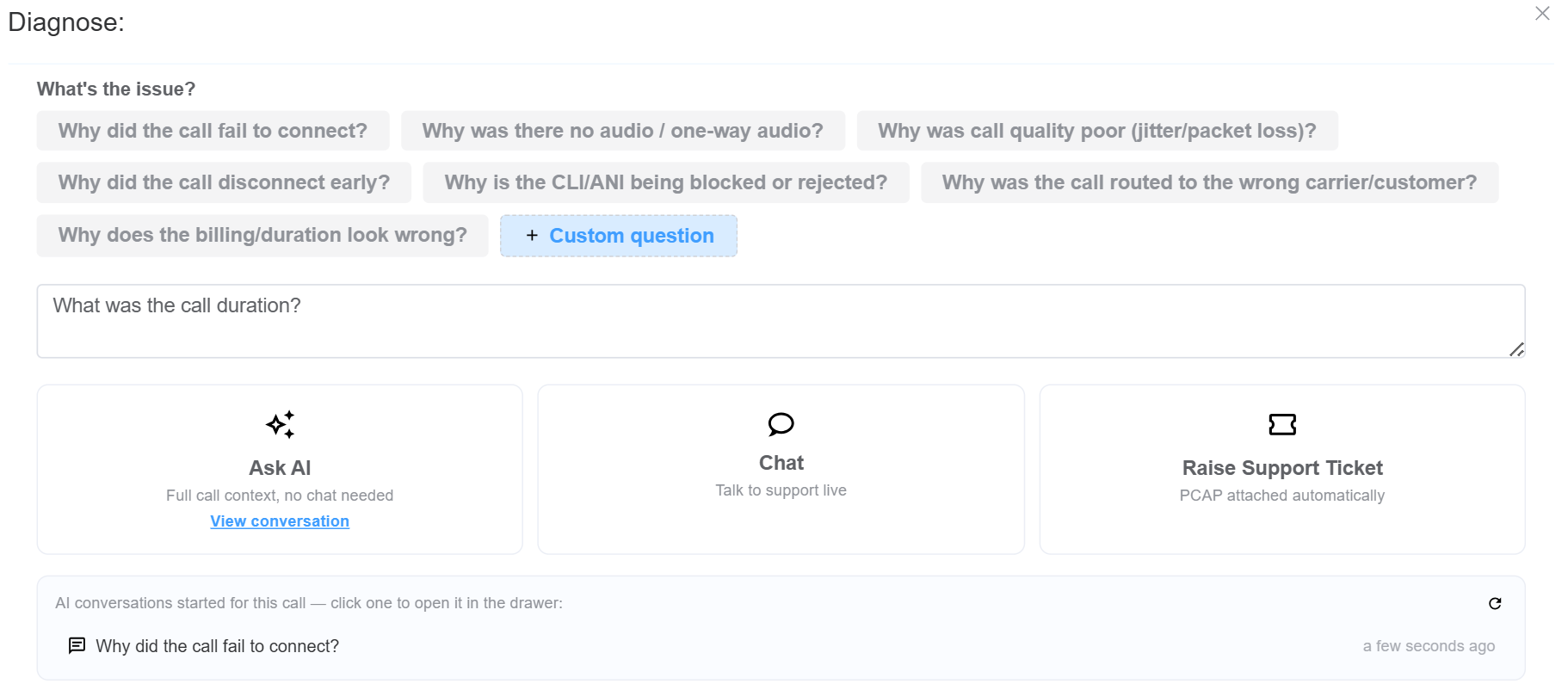

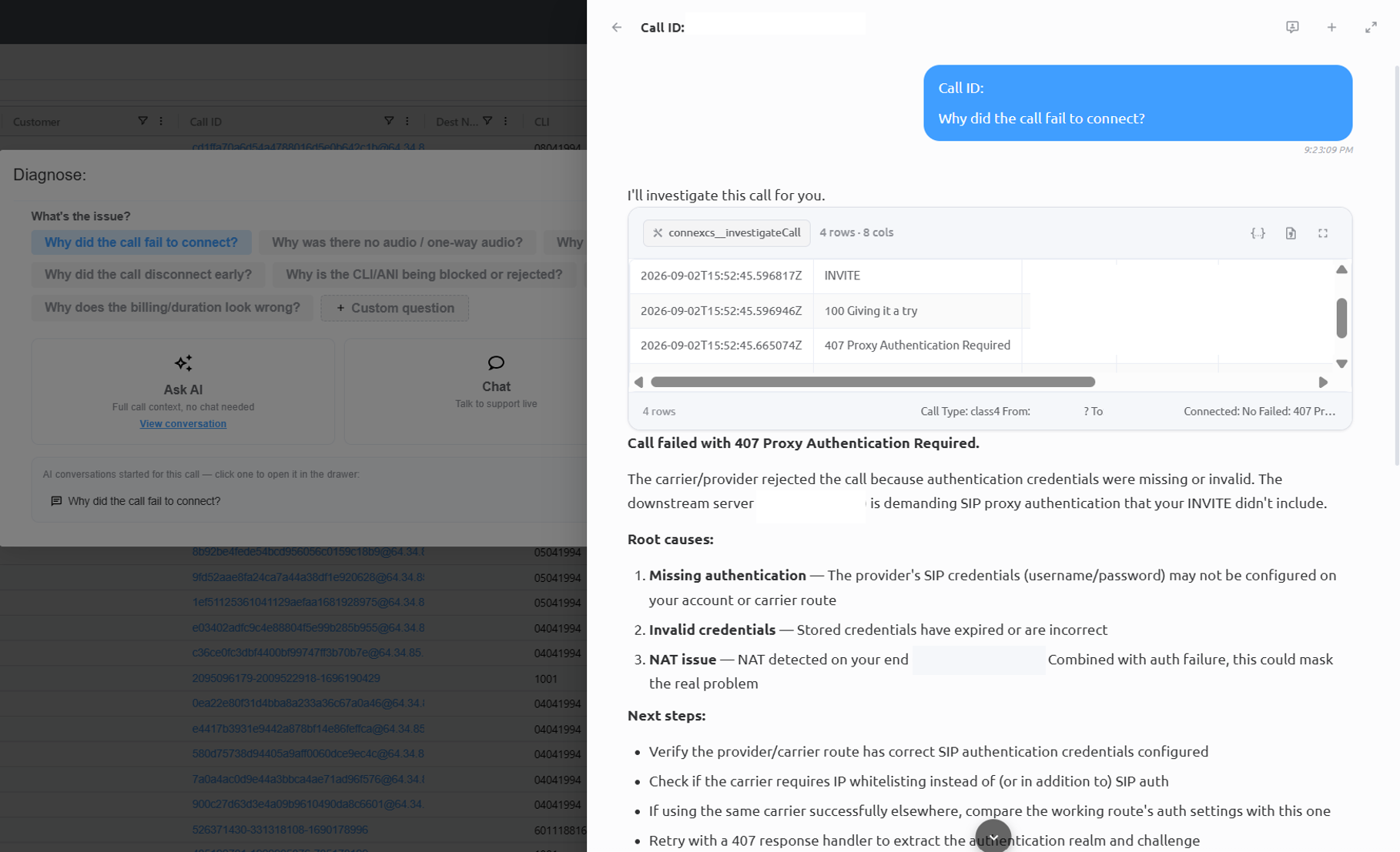

Click on a specific Call ID to view details and run call tools.

  • Call Details: The initial screen shows current details, which include Routing Status, Authentication, Induced PDD (Post-Dial Delay), Real-time Transfer Protocol (RTP), Routing Engine ID, Dual-Tone Multi-Frequency (DTMF), and more information.

    At the bottom, view the Providers, Billing details, Graphs, and Logs of the respective call.

    • Graphs: It will display parameters like Re=ound Trip Time, MOS, Jitter, and Packet Loss, only if the call experiences any of these issues.

Click each tab for field explanations:

Visual representation of SIP communications, see details in SIP Traces.

RTCP (Real-time Transport Control Protocol) reports provide real-time voice quality and network performance metrics for RTP media streams.

  • Duration: Indicates the total time span of media activity that RTCP (control protocol) data covers for a call or media session.

  • MOS (Mean Opinion Score): Its a numerical representation of perceived voice quality, modeled to approximate what a human listener would rate the call.
    Scale
    1.0 → Poor (unusable)
    3.0 → Fair (noticeable issues)
    4.0+ → Good to Excellent
    5.0 → Ideal (theoretical maximum)

  • Packet Loss: It measures the percentage of RTP media packets that were sent but never received at the destination.

  • Jitter: It measures the variation in arrival time of RTP packets, not the delay itself.

  • Quality Metrics Section: It summarizes voice quality performance calculated from RTCP data over the duration of the call. These metrics reflect how the call would be perceived by an end user.
    1. MOS (Mean Opinion Score): It represents perceived audio quality on a scale from 1.0 (poor) to 5.0 (excellent).
    Fields Explained

Field Description
Mean Average MOS calculated across all RTCP reports received during the call.
Median Middle MOS value when all samples are ordered. Useful for identifying skewed results.
Min Lowest MOS observed during the call.
Max Highest MOS observed during the call.
Std Dev Variability of MOS values across the call.
Assessment Quality classification derived from MOS thresholds.


2. R-Factor: Its a network quality score derived using the ITU-T E-Model (G.107). It reflects the combined impact of latency, jitter, packet loss, and codec behavior.
Scale: 0 to 100
Higher values indicate better call quality.
Fields Explained

Field Description
Mean Average R-Factor across all RTCP samples.
Median Middle R-Factor value.
Min Lowest R-Factor observed.
Max Highest R-Factor observed.
Std Dev Degree of variation in network quality.
Assessment Quality classification based on R-Factor thresholds.

Relationship Between MOS and R-Factor

  • R-Factor measures network performance
  • MOS represents user-perceived audio quality
  • Network Statistics: It represents RTCP-derived network performance metrics for the RTP media stream. These metrics describe the health and stability of the network path between the source and destination during the call.

    1. Packet Loss Statistics: It indicates RTP packets that were not successfully received. Even small loss can cause audio gaps or distortion.
      Fields Explained

      Field Description
      Mean Average packet loss percentage across all RTCP reports.
      Median Middle packet loss value, useful for identifying spikes.
      Min Lowest observed packet loss during the call.
      Max Highest observed packet loss during the call.
      95th Percentile Packet loss level below which 95% of samples fall. Highlights worst-case behavior.
      Cumulative Lost Total number of RTP packets lost over the call duration.
    2. Jitter Statistics: It measures the variation in packet arrival time. High jitter can cause buffering, delay, or choppy audio.
      Fields Explained

      Field Description
      Mean Average jitter across all RTCP samples (milliseconds).
      Median Middle jitter value.
      Min Lowest jitter observed.
      Max Highest jitter observed.
      95th Percentile Jitter value below which 95% of samples fall.
      Std Dev Degree of jitter variation over time.
    3. Network Endpoints: This section identifies the media endpoints involved in the RTP stream.

      1. Source Endpoint: It represents the originating RTP media source (IP address).
      2. Destination Endpoint: It represents the receiving RTP media endpoint.
  • Sender Information: It summarizes RTCP Sender Report (SR) data for the RTP media stream. It describes the media characteristics and transmission behavior of the sending endpoint during the call. This data is used to:

    • Validate codec and bitrate usage
    • Confirm media continuity
    • Correlate media duration with signaling
    • Support quality and capacity analysis


    Sender Metrics

    Field Description
    Report Count Number of RTCP Sender Reports received from the sending endpoint.
    A single report indicates a short-duration call or limited reporting interval.
    Total Packets Total RTP packets transmitted by the sender during the reported duration.
    Total Data Total media payload size sent over RTP.
    Primary Codec Codec used by the sender for media encoding.
    Bitrate (Mean) Average RTP payload bitrate sent during the call.
    Bitrate (Range) Minimum and maximum bitrate observed.
    Identical values indicate stable transmission with no bitrate fluctuation.
    Duration (Mean) Average duration per RTCP report.
    Matches total duration due to a single report.
    Codec Distribution Describes the set of audio or video codecs used during a media session
  • Direction Analysis: It evaluates RTP media quality separately for each call direction, measuring packet loss and jitter between specific source and destination IP:port pairs. You can click on a direction IP to see the details on this particular direction only.

  • SSRC Details: SSRC (Synchronization Source Identifier) is a unique identifier used in RTP and RTCP to distinguish individual media streams within a session.
    In ConnexCS, SSRC details are used to track, correlate, and analyze media streams across RTCP reports. You can click on a ssrc to check the details of a specific media stream within a session.

  • Alerts:It highlights RTCP anomalies or protocol-level conditions detected during media analysis.
    Alerts do not always indicate poor call quality—they are intended to surface diagnostic or signaling irregularities that may require investigation.

Section Parameter Description
Summary Total Reports Total number of RTCP reports received during the call. Indicates how many quality samples were collected over time.
Avg MOS Average Mean Opinion Score across all RTCP reports, representing overall perceived audio quality.
Avg Packet Loss Average percentage of RTP packets lost across all reports.
Avg Jitter Average variation in packet arrival time across the call, measured in milliseconds.

Quality Metrics Over Time

Parameter Description
MOS (Time Series) MOS values plotted over time to show consistency or variation in perceived audio quality during the call.
R-Factor (Time Series) R-Factor values plotted over time, representing network quality as calculated by the E-Model.
Time Axis Timestamp of each RTCP report sample, showing when metrics were recorded.

MOS Trend

Parameter Description
MOS Bar Value Individual MOS reported at each RTCP interval.
Consistency Identical values indicate stable perceived audio quality throughout the call.

Packet Loss & Jitter

Parameter Description
Packet Loss % Percentage of RTP packets lost at each RTCP interval.
Jitter (ms) Packet arrival time variation at each RTCP interval.
Dual Axis Loss and jitter are plotted together to correlate timing instability with packet loss.

Codec Distribution

Parameter Description
Codec Name Audio codec used in RTP media transmission (e.g., G.711).
Report Count per Codec Number of RTCP reports associated with each codec.
Unknown Codec Reports where codec information was not available in RTCP data.
Distribution Chart Visual breakdown showing codec usage proportions during the call.

Traffic by Direction

Parameter Description
Source → Destination RTP traffic flow direction represented by source IP:port to destination IP:port.
Directional Traffic Share Visual representation of how much media traffic flowed in each direction.
Directional Analysis Helps identify asymmetric or one-way media behavior.

Bitrate & Packet Count

Parameter Description
Bitrate (kbps) RTP payload bitrate over time, indicating bandwidth usage by the codec.
Packet Count Number of RTP packets transmitted during each RTCP interval.
Correlation Curve Shows relationship between bitrate and packet volume over time.
Peak Bitrate Maximum observed bitrate during the call.

Provides a chronological trace of call setup processing, showing how the system evaluated an incoming call against CLI policies, destination rules, recording configuration, and routing logic before allowing or rejecting the call.
Each entry in the log reflects a policy check or routing decision executed by the platform, confirming that the call was validated against all applicable controls before proceeding.
It captures the decision flow applied at call time, including:

  1. Whether the incoming destination number or CLI was rewritten.
  2. Whether the CLI matched any configured rules.
  3. Whether call recording was applied.
  4. Which routing mode and selection strategy were used.
  5. Whether the destination number (DN) was evaluated against global blocklists and allow lists.
  6. Whether the CLI (ANI) was evaluated against global and custom blocklists.

Underlying data that populates the call.

SIP Traces

SIP Tracing is a diagnostic tool for phone systems using SIP (Session Initiation Protocol) for interactions across trunks and between endpoints. Traces give detailed information about calls and call attempts while debugging and troubleshooting.

Uses of SIP protocol include call setup, maintenance, and tear-down, this tool is typically used only for call connection issues.

Call quality issues are often identified using other methods.

sip trace

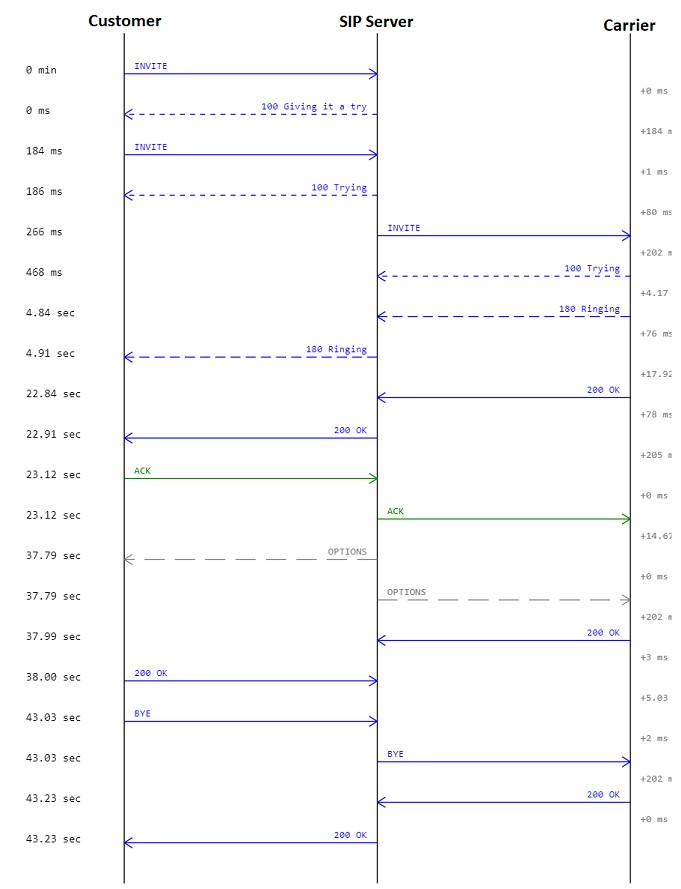

Here is an example describing a SIP trace:

    sequenceDiagram
    autonumber
    Alice->>Bob: INVITE
    Bob-->>Alice: 100 Trying
    Bob-->>Alice: 180 Ringing
    Bob->>Alice: 200 OK (Connected)
    Alice->>Bob: ACK
    Note over Alice,Bob: The call is active
    Alice->>Bob: BYE
    Bob->>Alice: 200 OK

Alice and Bob represents party on the call. Alice sends an INVTE packet to Bob. Then Bob sends a 100 Trying (provides you the feedback that your request is getting processed by a SIP Application) message together with 180 Ringing (the Destination User Agent has received the INVITE message and is alerting the user of call).

Further, 200 OK is sent which means the calls are connected.

The ACK is message is sent from Alice to Bob confirming that the call has been connected.

After the call is over the BYE message is sent.

SIP Trace Captures

The ConnexCS system supports always-on SIP Trace capture.

We keep a record of every packet sent and received by your server over the last seven (7) days.

To view the SIP Trace of a call:

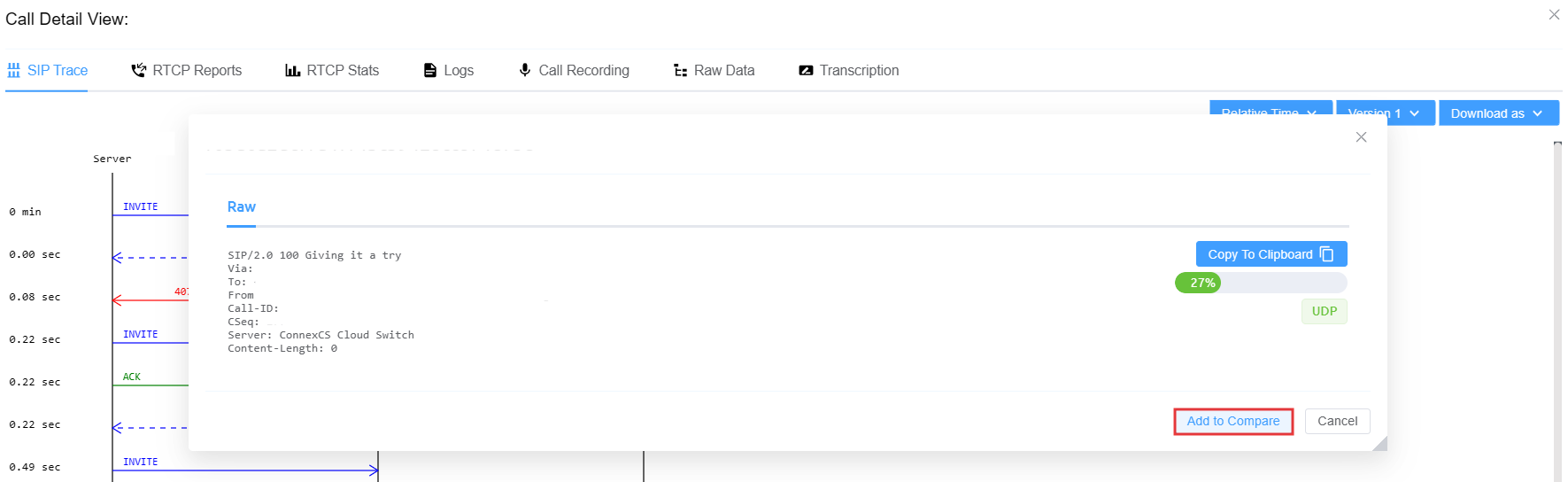

  1. Click a Call ID to view its SIP traces.
  2. Click SIP traces to view the SIP trace.

  3. Toggle between Relative Time and Absolute Time for a specific time of day.

  4. Options to download as Text or an Image.

Known issues with SIP Traces

  • Missing SIP data: SIP traces aren't always guaranteed. SIP packets are carried by UDP, which may cause the traces to be lossy at times. You can expect this due to the nature of the architecture.
  • Missed call attempts: If using SIP authentication, because there are two requests, it's possible that they hit our database out of order. This may cause the logging page to only display the first call attempt.
  • Considered for reporting calls and don't impact the calls directly. They're both rare, typically observed in less than 1 in every 50,000 calls.
  • Re-Transmissions: Re-transmissions occur when the same INVITE gets transmitted more than once. This means the same packets were sent more than once.

    Re-transmissions only happen on UDP. Re-transmissions occur when packets either don't reach the receiver or get lost in transmission. Thus re-transmissions are done after a certain time interval using specific timers.

    Here is an example describing Re-transmissions:

    sequenceDiagram
    autonumber
    rect rgb(127, 0, 255)
    rect rgb(100, 180, 255)
    rect rgb(252, 110,153)
    Alice->>Bob: INVITE (cseq 1)
    end
    Note over Alice,Bob: 500ms delay
    rect rgb(252, 110,153)
    Alice->>Bob: INVITE (cseq 1)
    end
    rect rgb(252, 110,153)
    Bob-->>Alice: 100 Trying
    end
    rect rgb(252, 110,153)
    Bob-->>Alice: 180  Ringing
    end
    rect rgb(252, 110,153)
    Bob->>Alice: 200 OK (Connected)
    end
    rect rgb(252, 110,153)
    Alice->>Bob: ACK
    end
    end
    Note over Alice,Bob: The call is active
    rect rgb(100, 180, 255)
    rect rgb(252, 110,153)
    Alice->>Bob: BYE
    end
    rect rgb(252, 110,153)
    Bob->>Alice: 200 OK
    end
    end
    end

Alice and Bob represents party on the call. Alice sends an INVTE packet to Bob. INVITE is an initial request.

Then Bob sends a 100 Trying (provides you the feedback that your request is getting processed by a SIP Application) message along-with 180 Ringing (the Destination User Agent has received the INVITE message and is alerting the user of call). 100 Trying and 180 Ringing are provisional response.

The re-invtes get absorbed when they're received. When Bob receives the INVITE packet and a special timer is set (please see the below timer table) as to how long it should wait for re-transmissions. If any packet is received within this time-frame, the packet gets ignored.

Further, 200 OK is sent which means the calls are connected. 200 OK is a final reply.

The ACK is message is sent from Alice to Bob confirming that the call has been connected.

Each line is a Message.

From 1 message (INVITE) till message 5 (ACK), it's considered as a single Transaction.

Similarly message 6 (BYE) and 7 (200 OK) are also considered as a single Transaction.

From message 1 till message 7, the whole conversation is a Dialog.

Note

Message displayed in Pink color. Transaction displayed in Blue color. Dialog displayed in Violet color.

Here is an example describing Re-transmissions:

    sequenceDiagram
    autonumber
    rect rgb(127, 0, 255)
    rect rgb(100, 180, 255)
    rect rgb(252, 110,153)
    Alice->>Bob: INVITE (cseq 1)
    end
    Note over Alice,Bob: 500ms delay
    rect rgb(252, 110,153)
    Alice->>Bob: INVITE (cseq 1)
    end
    rect rgb(252, 110,153)
    Bob-->>Alice: 100 Trying
    end
    rect rgb(252, 110,153)
    Bob-->>Alice: 180  Ringing
    end
    rect rgb(252, 110,153)
    Bob->>Alice: 200 OK (Connected)
    end
    rect rgb(252, 110,153)
    Alice->>Bob: ACK
    end
    end
    Note over Alice,Bob: The call is active
    rect rgb(100, 180, 255)
    rect rgb(252, 110,153)
    Alice->>Bob: BYE
    end
    rect rgb(252, 110,153)
    Bob->>Alice: 200 OK
    end
    end
    end

Alice and Bob represents party on the call. Alice sends an INVTE packet to Bob. INVITE is an initial request.

Then Bob sends a 100 Trying (provides you the feedback that your request is getting processed by a SIP Application) message along-with 180 Ringing (the Destination User Agent has received the INVITE message and is alerting the user of call). 100 Trying and 180 Ringing are provisional response.

The re-invtes get absorbed when they're received. When Bob receives the INVITE packet and a special timer is set (please see the below timer table) as to how long it should wait for re-transmissions. If any packet is received within this time-frame, the packet gets ignored.

Further, 200 OK is sent which means the calls are connected. 200 OK is a final reply.

The ACK is message is sent from Alice to Bob confirming that the call has been connected.

Each line is a Message.

From 1 message (INVITE) till message 5 (ACK), it's considered as a single Transaction.

Similarly message 6 (BYE) and 7 (200 OK) are also considered as a single Transaction.

From message 1 till message 7, the whole conversation is a Dialog.

Note

Message displayed in Pink color. Transaction displayed in Blue color. Dialog displayed in Violet color.

You can have take a look at the various SIP Timers in the table below:

Timer Default value Section Meaning
T1 500 ms 17.1.1.1 Round-trip time (RTT) estimate
T2 4 sec. 17.1.2.2 Maximum retransmission interval for non-INVITE requests and INVITE responses
T4 5 sec. 17.1.2.2 Maximum duration that a message can remain in the network
Timer A initially T1 17.1.1.2 INVITE request retransmission interval, for UDP only
Timer B 64*T1 17.1.1.2 INVITE transaction timeout timer
Timer D > 32 sec. for UDP 17.1.1.2 Wait time for response retransmissions
0 sec. for TCP and SCTP
Timer E initially T1 17.1.2.2 Non-INVITE request retransmission interval, UDP only
Timer F 64*T1 17.1.2.2 Non-INVITE transaction timeout timer
Timer G initially T1 17.2.1 INVITE response retransmission interval
Timer H 64*T1 17.2.1 Wait time for ACK receipt
Timer I T4 for UDP 17.2.1 Wait time for ACK retransmissions
0 sec. for TCP and SCTP
Timer J 64*T1 for UDP 17.2.2 Wait time for retransmissions of non-INVITE requests
0 sec. for TCP and SCTP
Timer K T4 for UDP 17.1.2.2 Wait time for response retransmissions

Table source: IBM; Original Ref: RFC 3261

Decode Identity header in SIP Trace

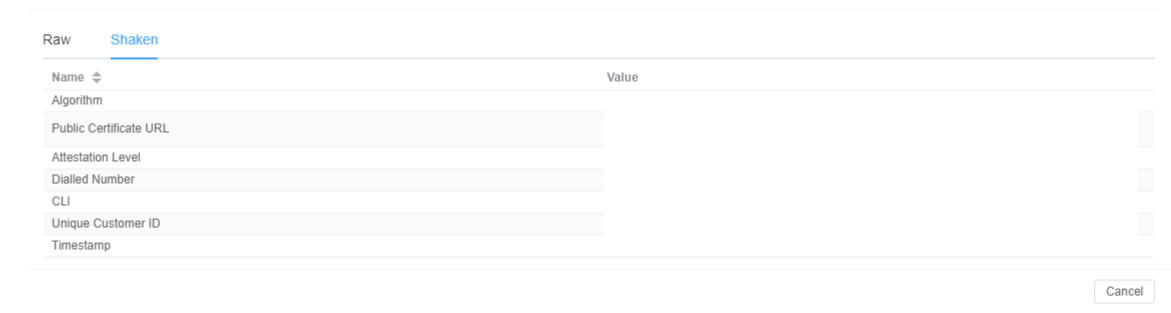

  1. Click on the INVITE packet in the SIP Trace.
  2. A window will appear with Raw and Shaken tabs. Only if you are signing calls using Shaken certificate.
  3. The Shaken tab will have the decoded information from the Raw tab like Algorithm, Public Certificate URL, Attestation Level, Dialled Number, CLI, Unique Customer ID, Timestamp.

Call Release Reasons

The causes of a dropped call are:

  1. Downstream BYE: When the call disconnects from the originator's side via a BYE message.
  2. Upstream BYE: When the call disconnects from the receiver side via a BYE message.
  3. MI Termination: The system terminates the call when it finds that there has been no audio connection between the call's originator and the receiver.

    The system triggers a BYE message on both sides within the application.

  4. Ping Timeout: If you enable the Sip Ping feature under Customer Routing, the receiver and originator receives OPTION packets (every X seconds).

    The originator and the receiver should reply with 200 OK after receiving the OPTION packets. If either the originator or receiver misses sending the acknowledgment, the call terminates due to a "ping timeout."

    It prevents any long-duration calls as the system recognizes either the originator or receiver as inactive.
